SQL is a query language developed for developers and engineers to view, manipulate and analyse databases. Developed in 1970 by IBM, the language became a gold standard for working with Relational Database Management Systems (RDMS).
According to a Stack Overflow survey in 2022, more than 50 per cent of professional developers reported using SQL among their top three choices for programming languages. Another report called ‘The State of Developer Ecosystem in 2022’ by Jetbrains revealed 81 per cent of respondents use SQL for back-end web development. This blog discusses SQL, a Structured Query Language, used to store, manipulate, and retrieve data in a relational database.
Table of Contents
1) Understanding What is SQL
a) History of SQL
2) The importance of SQL

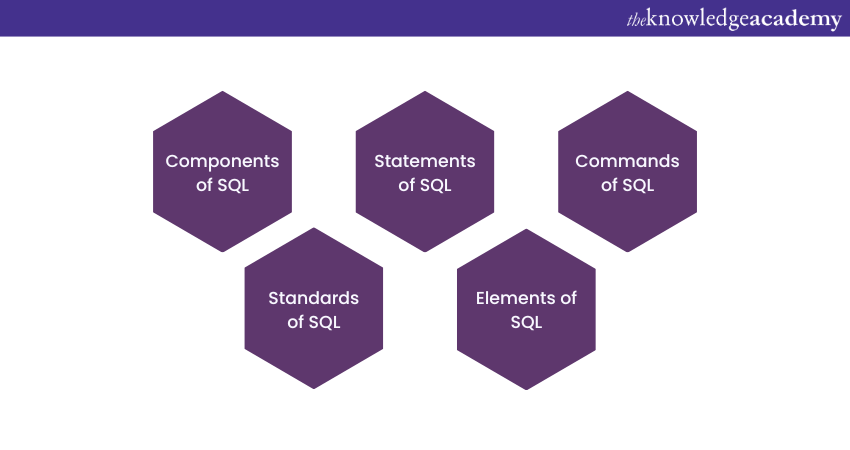

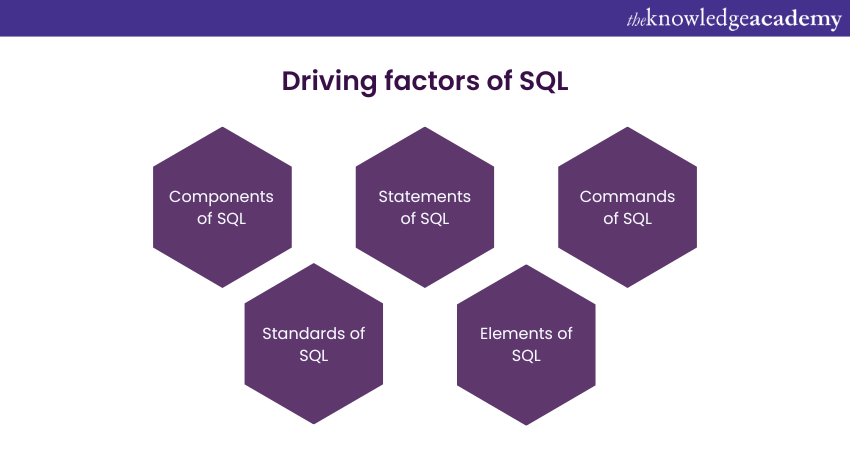

3) The working of SQL
a) Components of SQL
b) Statements of SQL
c) Commands of SQL
d) Standards of SQL
e) Elements of SQL
SQL, an acronym for ‘Structured Query Language’, is a popular query language used frequently across all software applications. It is referred to as a query language or a data query language because it is designed to help developers perform queries in databases and information systems.
SQL has consistently proven its worth as a well-known and widely used query language. Developers can use SQL to store and process information within a relational database, which is a type of database that stores information in a tabular format. This format stores and displays information in rows and columns, representing the various attributes of stored data. It also represents the many relationships between the data values.
Users can execute statements in SQL to perform many operations like storing, updating, removing, searching and retrieving information from the database. The language can be further utilised for the maintenance and optimisation of the database performance. The language will come of immense use to companies that store a massive volume of data. They can learn to or employ professionals who are experienced with manipulating data with the SQL language.
Developed by researchers at IBM in 1970, SQL was first known as ‘SEQUEL’ or ‘Structured English Query Language’. It was designed to use ‘Codd’s model’, which refers to the late Edgar F. Codd, a pioneer of relational database models. His model describes the 13 rules that a database must satisfy to be called a relational database.
Oracle, formerly listed as ‘Relational Software, Inc.’, introduced SQL, the first commercial implementation in 1979. This implementation became the gold standard for RDMS (Relational Database Management Software) languages.
The SQL language was then adopted and established as a standard in 1986 by the ANSI (American National Standards Institute), a private organisation created to administer standards in the US. This was followed by the adoption of SQL by the ISO in 1987, maintained under ISO/IEC JTC 1, Information Technology SC 32, Data Management and Interchange.
The SQL language is used by developers and data analysts worldwide because of its seamless integration with various programming languages. For example, developers can embed their SQL queries with Java for building high-performance applications that process data. These applications were built with well-known SQL database systems like MS SQL Server and Oracle. The usage of common English keywords in SQL statements makes the language quite easy to learn.
Furthermore, the SQL language can be used by a company to extract usage data on its customers. They can utilise the language to create a database for storing customer purchase data, by which they can discover the kinds of products which customers buy. SQL makes it easy for companies to extract data from databases which are later used for analysis. The query language is a crucial tool to learn for aspiring data scientists, as data points are created in millions every minute. However, the data in SQL is generally in a raw form and hence has no narrative to offer.
The SQL language is utilised to store and manage data in relational databases. The many database tables stored by the system are related to each other. It is important to understand the mechanism of the query language before using it. Here are the key components of the SQL language:
Learn to manage and process your stored data by signing up for the Introduction to Database Training Course now!
1) SQL table: A table in SQL is the fundamental element of a relational database. It is a basic database table in SQL comprising rows and columns. There can be many database tables in a system whose relationships can be created by database engineers for the optimisation of data storage.
For example, if we want to create a basic table in SQL to store product details, we can do it by making a new table named ‘Product’, as follows:
The database engineer will then link the ‘Product’ table to the ‘Colour’ table with the Colour ID:
2) SQL Statements: Statements in the SQL language are queries or instructions that are understood by relational database management systems. SQL statements can be built by software developers by using various elements of the SQL language. The elements are basic components like variables, identifiers and search conditions which form the correct SQL statement.
For example, we can use the ‘SQL INSERT’ command to store the details ‘Pillow Brand A’, price ‘500 GBP’, into a database table named ‘Pillow_table’. This table will have the column names ‘brand_name’ and ‘cost’, as follows:
INSERT INTO Pillow_table(brand_name, cost)
3) Stored Procedures: Developers can store a collection of one or more SQL statements in a relational database. They can later utilise these stored statements, also known as stored procedures, to update the sales tables. This will save them time from writing the same statement repeatedly in different applications.
For example, we can create a basic stored procedure by using the ‘CREATE PROCEDURE’
command, followed by the SQL commands, as follows:
CREATE PROCEDURE new_students AS
SELECT student_id, first_name
WHERE Country = ‘Denmark’;
4) Parser: The Parser in SQL creates fields based on the fields defined within the SQL query. It basically parses the SQL query in a string field. The parser is a component that performs the first step in processing a statement. It also identifies the statement type and then conducts many checks on it for syntax and semantics.
SQL conducts parsing of two types, namely soft and hard parsing. A soft parse is the shorter process of executing a query, and a hard parse comprises parsing, optimising and generating a query plan. The parser essentially replaces a few of the words in an SQL statement with special symbols.
The parsing process then checks the SQL statement for the following:
a) Correctness: The SQL statement is verified by the parser for its conformity to the semantics or rules of SQL. These rules ensure that the query is correct. For example, the parser can check if the statement ends with a semi-colon. If it does not detect a semi-colon, the parser returns an error to the user.
b) Authorisation: The parser also does the task of validating the user’s authorisation for manipulating data by running the query. For instance, the privilege to delete data is only assigned to admin users.
5) Relational Engine: The relational engine in SQL basically creates a plan for the retrieval, writing, or updating of the data in the most effective fashion. The relational engine is also referred to as a query processor. It is designed to check for similar queries and reuse data manipulation techniques used previously or to generate a new one. It then writes what is known as the ‘byte code’, an intermediate-level representation of a new plan for the SQL query. The byte code is then utilised by relational databases to conduct database searches and data modifications.
6) Storage Engine: The storage engine, also called the database engine, is a component of the SQL software that processes byte code and then runs the required SQL command. The engine reads the data and stores it in the database on the system’s physical storage. After the procedure is complete, the engine returns the query’s result to the requesting program.
Learn the various SQL operations to query databases in MySQL by signing up for the Introduction to MySQL Course now!

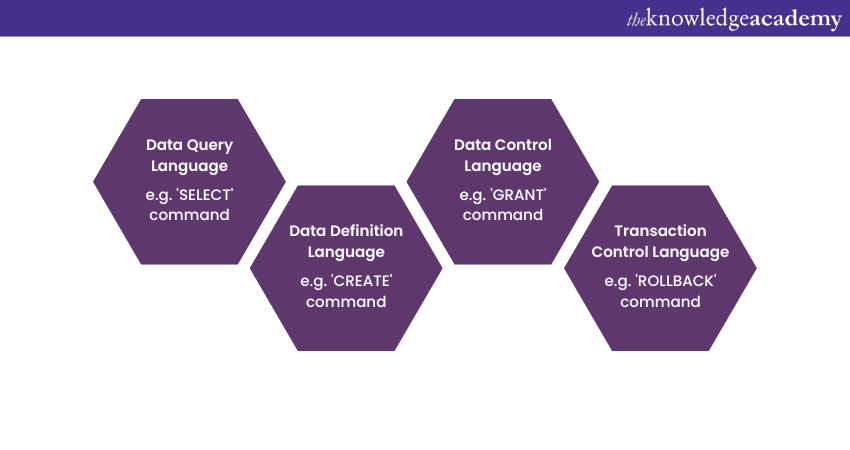

The statements of SQL are keywords specifically used by developers to manipulate stored data in a database. The commands are categorised as follows:
a) Data Query Language (DQL): Data Query Language comprises instructions used for the retrieval of data from relational databases. The ‘SELECT’ command is executed by applications to filter specific results and return them from the SQL table.
b) Data Definition Language (DML): Data Definition Language comprises the commands executed for designing the structure of the database in. SQL database objects can be created and modified by database engineers using DDL, depending on the business requirements. A database engineer can use the ‘CREATE’ command to create new objects like tables, indexes and views.
c) Data Control Language (DCL): Administrators of an SQL database can utilise DCL for managing and authorising users for access. The ‘GRANT’ command can be used to permit applications to manipulate tables.
d) Transaction Control Language (TCL): A relational database engine in SQL uses TCL for automatically making changes to a database. Database engineers can use the ‘ROLLBACK’ command to undo an incorrect transaction.
Here are some common commands used in SQL:
1) CREATE: An engineer can define a SQL database structure schema using the ‘CREATE’ command.
2) INSERT: An engineer can insert data into an SQL table row using the INSERT command.
3) UPDATE: An engineer can update existing data in SQL using the UPDATE command.
4) DELETE: An engineer can remove rows from a table in SQL using the DELETE command.
5) SELECT: Attributes can be selected using the SELECT command, depending on the condition in the WHERE clause.
6) DROP: An engineer can remove tables and entire databases in SQL with the DROP command.
The SQL standards are a collection of guidelines that formally define the use of SQL. The ANSI and the ISO adopted the standards in 1986. These SQL standards by the ANSI are used by software vendors to develop database software in SQL for engineers. Furthermore, the SQL standards are categorised into 15 parts: Part 1 – SQL/Framework, Part 2 – SQL/Foundation, Part 3 – SQL/CLI, and so on.
SQL contains important elements which developers and engineers can utilise, such as:
1) Keywords: Each statement in SQL has one or more keywords.
2) Identifiers: The objects in a database which are named, like tables and columns, are called Identifiers.
3) Expressions: The combination of various elements like SQL operators, columns and constants form expressions.
4) Search Conditions: A condition is an element used to select a subset of table rows in SQL or to handle IF statements to control the program’s execution flow.
5) NULL Value: Engineers can use ‘NULL’ to help specify an unknown or missing value in SQL.
The SQL language is designed to help developers query relational databases. It is applicable across RDBMS systems to describe and manipulate data and to create and drop tables from databases. The language comprises different statement types like DDL, DML, DCL, etc., which helps engineers to execute various commands for data manipulation. Companies benefit significantly from hiring experienced SQL database engineers to view, analyse and make improved business decisions from the stored data.
