Kubernetes Architecture: A Comprehensive Guide



Do you know microservices fragment applications into smaller, self-contained units? This is the reason why Kubernetes Architecture is so important. It arranges each unit's life cycle, ensuring smooth operations. The result is efficient resource use and streamlined application management.

Complex applications require sophisticated networking, storage, and CPU resource allocation. Further discover how Kubernetes Architecture offers practical solutions to such issues in this comprehensive blog and streamline your application management.

Table of Contents

1) What is Kubernetes Architecture

2) High-level overview

3) Anatomy of a Kubernetes Cluster

4) Components in detail: What powers Kubernetes?

5) Networking in Kubernetes

6) Security features in Kubernetes

​7) What are Kubernetes Architecture best practices and design principles?

8) Conclusion

What is Kubernetes Architecture

Kubernetes has become a buzzword in the tech industry. But what is it exactly? Kubernetes is like a flexible toolbox for running computer programs in containers. It can automatically adjust to changes, like adding more tools when needed, making it easier to manage and scale applications. It manages containers, which are lightweight, stand-alone executable packages. These containers can include all elements needed to run an application.

Containers are easy to deploy but can be hard to manage at scale. Here is where Kubernetes comes in. Kubernetes Architecture provides the tools to handle hundreds and thousands of containers. Think of it as an Operating System for your containerised applications. It creates, deletes, and organises containers as needed.

The architecture comprises multiple components. These are divided into the Control Plane and the Data Plane. The Control Plane is the brains of the operation. It makes global decisions and maintains the cluster's overall state. The Data Plane consists of Worker nodes. These execute tasks as directed by the Control Plane.

A third key part is the storage layer. It handles data persistence across the cluster. Together, these components form an integrated system. This system automates tasks like load balancing, scaling, and health monitoring.

Understanding this can seem like a tall order. Yet, it's crucial for anyone involved in deploying or managing Kubernetes. So, why is the Kubernetes Architecture built this way? The answer lies in the goals of Kubernetes. It aims for high availability, fault tolerance, and extreme scalability.





High-level overview

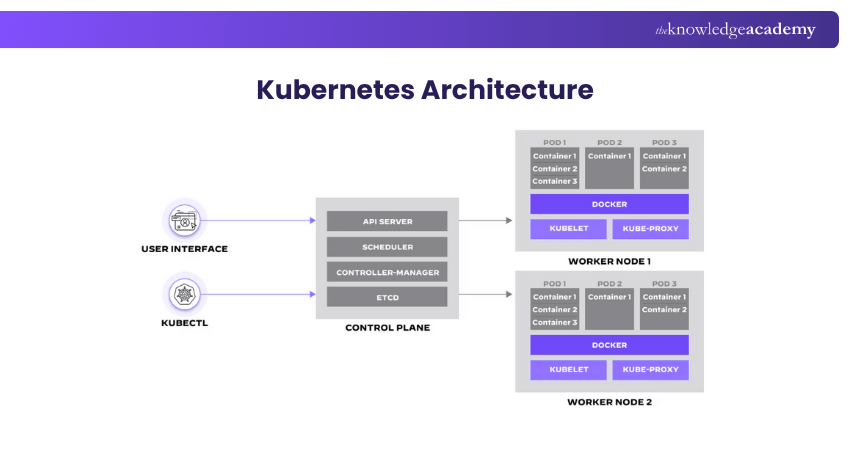

The Kubernetes Architecture has three primary building blocks: the Master node, the Worker nodes, and Kubernetes objects. Let's take a closer look at each of these elements to understand their roles and functionalities in this Kubernetes Architecture overview.

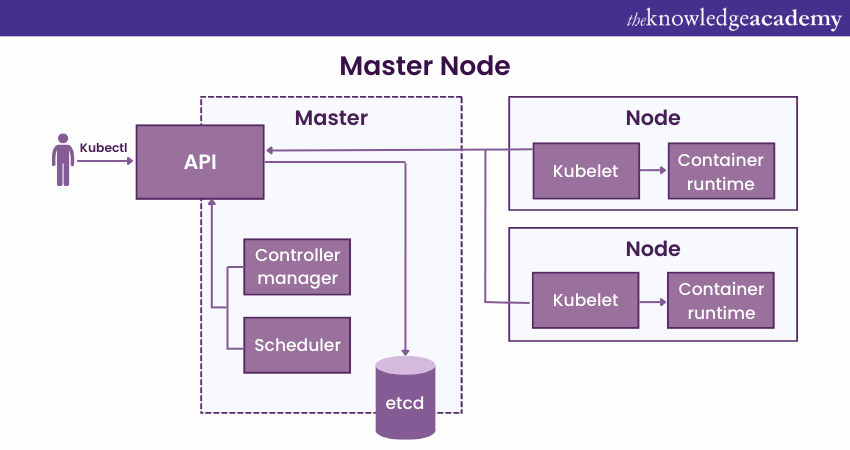

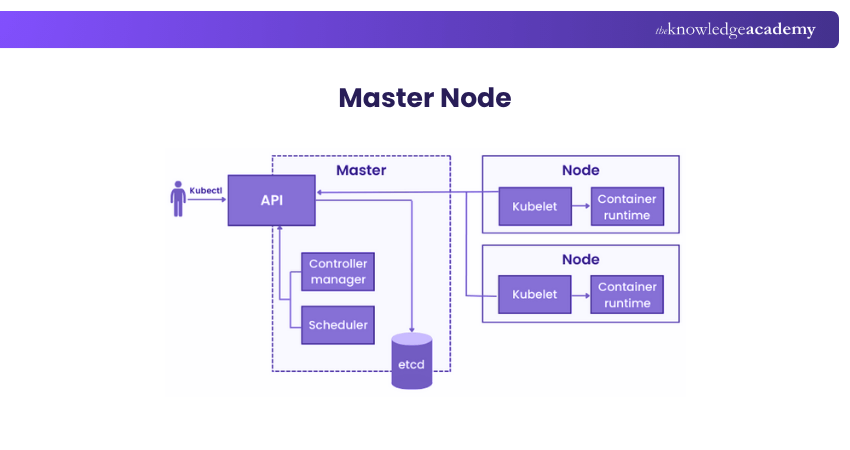

Master node

The Master node is not just another server; it's the orchestrating powerhouse of a Kubernetes cluster. Acting as the command centre, it coordinates all activities. Think of it as the conductor of an orchestra, setting the tempo and cues for all other instruments, the Worker nodes.

It deals with the cluster's overall management. For instance, it determines which node should run a particular container. It balances the workloads across Worker nodes, ensuring optimal utilisation. The Master node looks after the health of the cluster. If a Worker node fails, it reallocates the tasks to another Worker. This ensures high availability and fault tolerance.

Another critical role is its interaction with the user. Whether it's through CLI, API, or a dashboard, the Master node receives your input. It parses your commands and translates them into actionable tasks. These are then dispatched to the appropriate Worker nodes.

Worker node

While the Master node is the brains, Worker nodes are the muscle. These units do the actual work assigned by the Master node. They run containers, which are instances of your applications. Each Worker node has its own local environment. This is essential for running containers. It includes necessary elements like the OS, a container runtime, and a special Kubernetes agent called Kubelet.

Kubelet is the liaison between a Worker node and the Master node. It ensures the containers are running as expected. Kubelet receives instructions from the Master node and implements them locally. Worker nodes also handle networking between containers. This involves routing, DNS handling, and load balancing. These functions enable smooth communication between different parts of an application. The image below will help you understand high level architecture clearly.


Kubernetes objects

Kubernetes objects are the high-level abstractions over your containerised applications. They define the state of your cluster, specifying how applications should deploy and run. A Kubernetes object is a manifestation of your desired state. When you create one, you inform the Master node of your expectations. For example, you might specify the number of replica Pods you need or define a service to expose an app to the internet.

Among the basic objects, Pods are the most elemental. A Pod wraps one or more containers, encapsulating storage resources, a unique network IP, and management policies. Services are another crucial object. They help in accessing Pods and can distribute network traffic among them.

ConfigMaps and Secrets are special objects that store configuration data and sensitive information. They allow you to manage configurations separately from container images, making your applications more portable and secure.

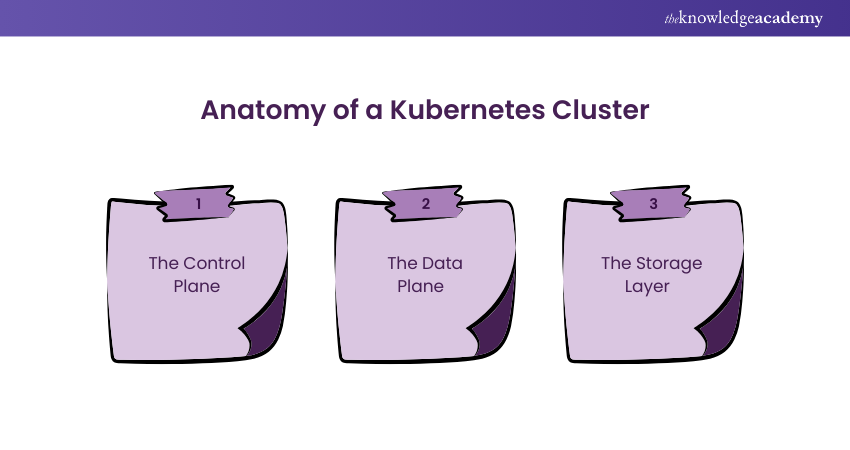

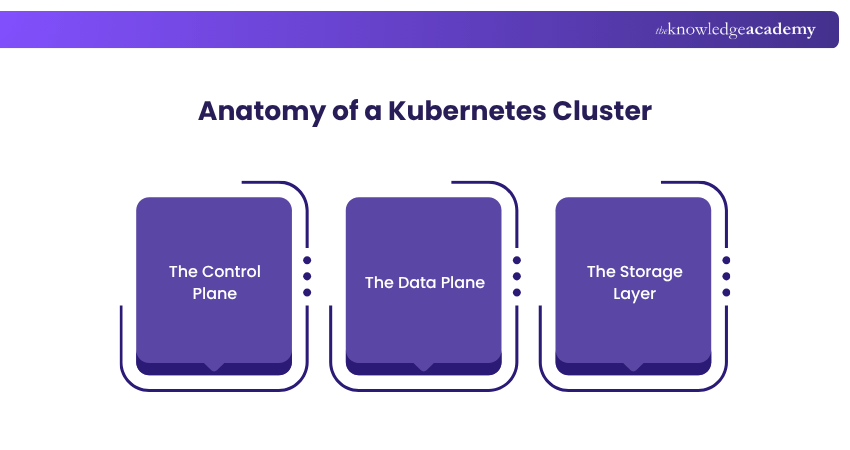

Anatomy of a Kubernetes Cluster

Unpacking the complexities of Kubernetes Architecture involves getting into its cluster anatomy. The cluster's structure can be broken down into three main layers: the Control plane components, the Data plane components, and the Storage layer. By understanding these layers, we can gain a deeper understanding of how Kubernetes maintains its resilience, scalability, and manageability.

The Control plane

The Control plane is the decision-making hub within a Kubernetes cluster. It's usually housed in the Master node and has several vital components. The API Server is the cornerstone of this layer. It exposes the Kubernetes API and is the gateway for all interactions within the cluster. It processes RESTful API requests, validates them, and executes the subsequent operations.

Then we have ‘etcd’, the consistent and highly-available key-value store. It acts as the primary datastore for the cluster, storing configuration data, state data, and metadata. This ensures that the cluster returns to its desired state even after failures.

The Scheduler is another crucial Control plane component. It's responsible for placing Pods, the smallest unit of computing in Kubernetes, onto suitable Worker nodes. When you submit a request to run a Pod, the Scheduler finds the best node to host it. It considers factors like resource utilisation, constraints, and affinity rules.

Controllers are indispensable parts of the Control plane. They come in various flavours like Node Controller, Replication Controller, and Endpoints Controller. Controllers maintain the desired state of the cluster by constantly comparing the current state with the desired state and adjusting as needed.

Level up your DevOps skills with our DevOps Courses – Register now and navigate the future of application orchestration!

The Data plane

The Data plane is the layer where the actual workloads run. It exists mainly on the Worker nodes. The Kubelet is the node agent that ensures all containers in the Pod are healthy. It starts, stops, and restarts containers as needed to keep the system stable.



Another key element is the Kube-proxy, responsible for networking functions within Kubernetes. It takes care of IP addressing, load balancing, and network routing. Kube-proxy ensures that data packets go to the correct containers and that services are accessible from the outside world.

And then there's the Container Runtime. This is the engine that runs your containers. While Docker is commonly used, Kubernetes also supports other runtimes like containerd. The runtime launches and runs containers according to the specifications in their images.

​Empower your DevOps journey with Kubernetes mastery - Unlock limitless possibilities through our Kubernetes Training For DevOps.

The Storage layer

The Storage layer refers to how the platform manages and provides storage resources (like disk space) for your applications. It ensures that your applications have a place to store data, whether it's databases, files, or other information they need to work correctly. This Storage layer ensures data is available, reliable, and can be easily connected to your running applications.

However, for more persistent needs, there are Persistent Volumes (PVs). PVs exist independently of the Pod lifecycle, offering a way to store data more durably. To use these, Pods can make Persistent Volume Claims (PVCs), which are like tickets to access storage.

Storage Classes are the templates that define how PVs should be provisioned. They describe the type of storage to use, whether it's cloud-based or local, and the access modes. This abstraction simplifies the storage provisioning process.

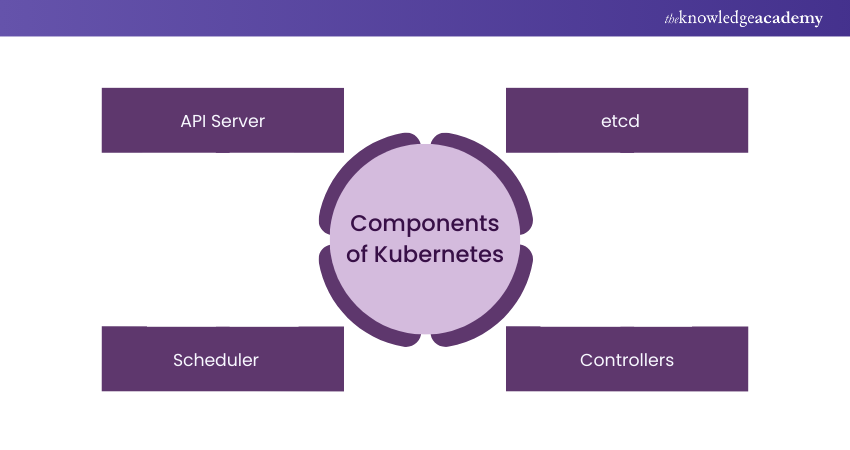

Components in detail: What powers Kubernetes?

Kubernetes is a tightly integrated collection of components working in harmony. Understanding these individual elements provides insights into how Kubernetes operates. From its frontend API server to its backend data storage mechanisms, each component has its own specialised role. In this section, we go deep into the nitty-gritty of these components.

API Server

Often seen as the 'front door' to the Kubernetes Control plane, the API Server is a critical component. It serves as the interface between users and the backend Control plane. It receives all RESTful API calls, whether they come from a human operator or another internal component.

After receiving these requests, the API Server performs authentication and authorisation checks. It also validates if the request format meets the expected schema. Once a request passes these checks, the API Server processes it, coordinating with other components like the ‘etcd’ and Scheduler.

etcd

Consider ‘etcd’ as the 'brain' of the Kubernetes cluster. It's a highly reliable, distributed key-value store that saves the cluster's state. This is where data like configurations, secrets, and the status of running Pods are stored. ‘etcd’ is especially vital for maintaining high availability and fault tolerance. When changes occur in the cluster, such as Pod creation or deletion, ‘etcd’ is updated. Its consistency guarantees that each cluster node has a unified and up-to-date view of the system state.

Scheduler

In the Kubernetes Architecture, the Scheduler acts like a highly efficient traffic cop. It decides where to run new Pods based on several factors. These factors include resource availability, user-defined constraints, and other policies. The Scheduler scans through all available nodes to find the most suitable fit for each Pod. Once it makes a decision, it instructs the API Server to update the ‘etcd’ database. The selected Worker node then receives the new Pod for execution.

Controllers

Controllers are important in the Kubernetes control plane, acting as the automation engines that power the cluster. These components continually monitor the cluster's actual state and strive to bring it in line with the desired state. They take corrective actions whenever discrepancies arise, and each type of controller has a specific role in maintaining different aspects of the system.

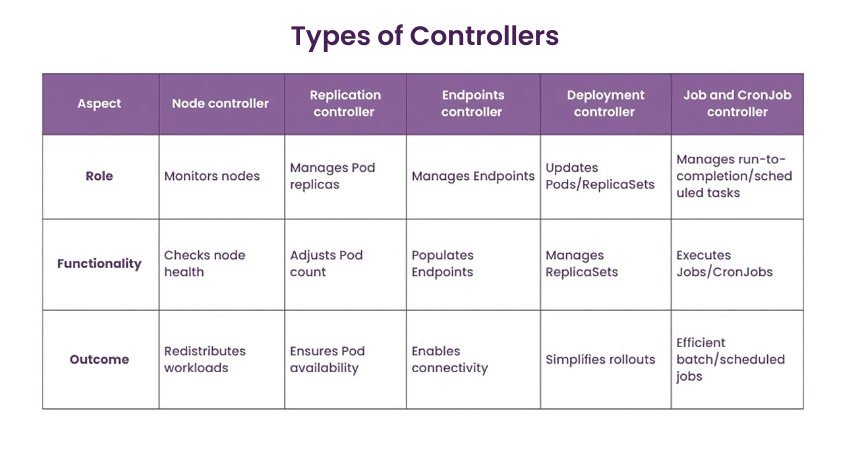

Understanding controllers helps you grasp how Kubernetes remains so stable and efficient. Below are some key types of controllers in Kubernetes:



Node controller

a) Role: Monitors the health of nodes within the cluster.

b) Functionality: Keeps tabs on the availability of nodes and takes action if a node becomes unresponsive.

c) Outcome: Helps in ensuring that workloads are not scheduled on failed nodes and redistributes existing workloads if needed.

Replication controller

a) Role: Manages the number of identical copies of a Pod running in a cluster.

b) Functionality: Constantly compares the number of running Pods with the desired count and creates or deletes Pods as needed.

c) Outcome: Ensures high availability and reliability by maintaining the desired number of Pod replicas.

Embark on a Docker journey today - Explore our Introduction To Docker Training and revolutionise your DevOps expertise!

Endpoints controller

a) Role: Manages the Endpoints objects that represent network endpoints.

b) Functionality: Populates the Endpoints objects with IP addresses based on Service and Pod status.

c) Outcome: Enables network connectivity within the cluster by keeping service-to-pod mapping accurate.

Deployment controller

a) Role: Facilitates declarative updates to Pods and ReplicaSets.

b) Functionality: Manages the desired state of deployments through ReplicaSets.

c) Outcome: Simplifies application rollouts, rollbacks, and scaling.

Job and CronJob controller

a) Role: Manages run-to-completion and scheduled tasks.

b) Functionality: Ensures that Jobs and CronJobs execute their tasks as specified.

c) Outcome: Provides a framework for running batch and scheduled jobs efficiently.

Kubelet

Located on every Worker node, the Kubelet is the bridge between the Master and Worker nodes. Its main task is to ensure that all containers in a Pod are running smoothly. Kubelet does this by frequently checking the health status of the containers. It communicates with the Master node, specifically the API Server, to report the health status or to receive new instructions. If a container becomes unresponsive or crashes, the Kubelet takes corrective actions, like restarting the container.

Kube-proxy

Networking is a critical function within a Kubernetes cluster, and Kube-proxy serves as its backbone. It runs on each Worker node, handling all networking tasks. Kube-proxy manages service discovery, load balancing, and routing. It reads services and endpoints information from the ‘etcd’ store to dynamically update its rules. This ensures that network requests reach the right services and Pods. Kube-proxy can work in different modes, including User Space, iptables, and IPVS, each with its own set of capabilities and limitations.

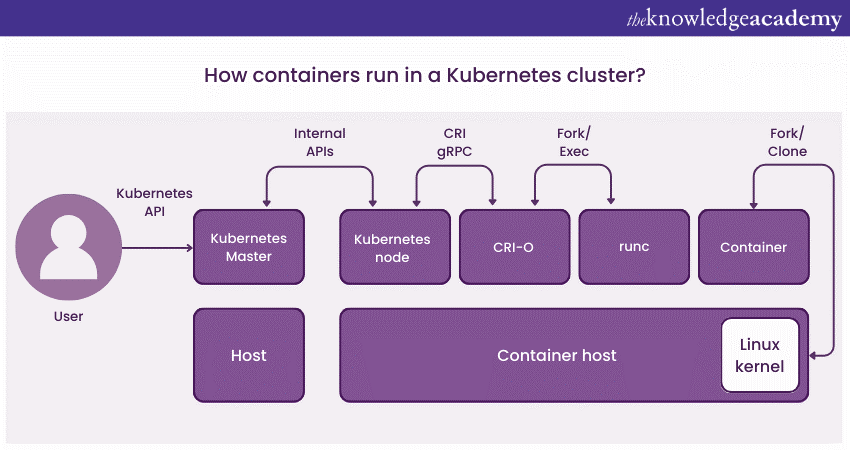

Container runtime

Executing containers is the fundamental operation in Kubernetes, and that’s the job of the Container Runtime. Different runtimes like Docker, containerd, and CRI-O can be plugged into Kubernetes.




Regardless of which one you choose, the Container Runtime takes care of pulling images from a registry, unpacking them, and running them as containers. It interacts closely with the Kubelet, which instructs it to start, stop, or restart containers based on the desired state.

Persistent Volumes (PVs) and Persistent Volume Claims (PVCs)

Data storage in Kubernetes is managed through Persistent Volumes (PVs) and Persistent Volume Claims (PVCs). PVs are like long-term storage units that exist independently of any Pod lifecycle. PVCs, on the other hand, are requests for these storage units. When a Pod needs to interact with persistent storage, it uses a PVC to claim a specific amount of storage space from a PV. This mechanism allows for data persistence across Pod restarts, ensuring data integrity and availability.

Networking in Kubernetes

Networking is a cornerstone in Kubernetes Architecture. It performs an important role in communication between Pods, services, and the external world. Given its complexity, understanding Kubernetes networking can be challenging. This section aims to simplify it by breaking down its core elements.

Pod-to-Pod communication

It’s role, mechanism and significance are discussed below:

Role: Enables direct communication between Pods, making it the basic unit of networking in Kubernetes.

Mechanism: Utilises a flat network namespace, which allows every Pod to see all other Pods without NAT.

Significance: Facilitates smooth intra-application communication, which is essential for microservices-based applications.

Service networking

It’s role, mechanism and significance are discussed below:

Role: Manages the exposure of applications, allowing them to be accessible within the cluster or from the internet.

Mechanism: Uses a Service object in Kubernetes to provide a single DNS name and load balances traffic to application Pods.

Significance: Provides a stable endpoint for applications, decoupling the consumer from the individual Pod IPs.

Ingress and Egress

It’s role, mechanism and significance are discussed below:

Role: Controls how external users and systems interact with services running inside the Kubernetes cluster.

Mechanism: Ingress controllers manage incoming traffic based on routing rules. Network Policies govern what outgoing traffic is permitted.

Significance: Enables application exposure to the internet, ensuring proper routing and security controls.

Network policies

It’s role, mechanism and significance are discussed below:

Role: Dictates what kind of communication is permitted between Pods or between Pods and other network endpoints.

Mechanism: Implemented via Network Policy objects, these rules can be set to control both incoming and outgoing traffic.

Significance: Enhances security by controlling which Pods communicates with each other, preventing unwanted or insecure access.

DNS and name resolution

It’s role, mechanism and significance are discussed below:

Role: Aids in the discovery of services within the Kubernetes cluster, making it easier for developers and systems to interact.

Mechanism: Uses CoreDNS or similar in-cluster DNS providers to map service names to their corresponding IP addresses.

Significance: Allows for more human-friendly communication, eliminating the need to remember or hard-code specific IP addresses.

Security features in Kubernetes

The Kubernetes Architecture includes several built-in security features to protect both the Control plane and the applications running in a cluster. This section will elaborate on these features to offer an understanding of how Kubernetes maintains a secure environment.

Role-based Access Control (RBAC): In Kubernetes, Role-based Access Control, commonly known as RBAC, is used to set permissions on who can access what within a cluster. It provides fine-grained control over the operations that can be performed, limiting the potential for unauthorised actions. The primary elements include Roles and RoleBindings, which work together to define and assign permissions to users or groups.

Security contexts: Security contexts are another essential feature for maintaining cluster security. They define privilege and access control settings for Pods and containers. This includes settings like running a container as a non-root user or limiting the system calls that the container can make. Security contexts can be defined at the Pod level or for individual containers, offering flexibility in how you apply security policies.

Network policies: We touched on network policies under networking, but they are worth mentioning again in the context of security. Network policies are essentially firewall rules for your cluster. They allow you to define which Pods can communicate among each other and with external systems, providing a crucial layer of security against unauthorised or malicious network access.

Secrets management: Sensitive data like passwords, tokens, or keys should never be stored openly. Kubernetes offers a Secrets object to handle such sensitive information securely. Secrets mounts as data volumes or exposed as environment variables to the containers, thus avoiding hardcoding of sensitive information in the application code.

API server authentication and authorisation: The API server acts as the front door to any Kubernetes cluster. Ensuring secure access to the API server is critical for the safety of the cluster. Kubernetes provides various ways to authenticate and authorise users, ranging from simple static token files to more complex systems like OpenID Connect.

What are Kubernetes Architecture best practices?

The best practices suggest a platform strategy considering the security, governance, monitoring, storage, networking, container lifecycle management and orchestration like Kubernetes.

Here are some of the suggested best practices for architecting Kubernetes clusters:

a) Verify the use of the latest Kubernetes version

b) Invest in upfront training for developer and operations teams

c) Establish enterprise-wide governance

d) Ensure alignment and integration of tools and vendors with Kubernetes orchestration

e) Improve security by integrating image-scanning processes in CI/CD, scanning during build and run phases

f) Exercise caution with open-source code from GitHub repositories

g) Adopt RBAC across the entire cluster

h) Uphold the principles of least privilege and zero-trust models

i) Secure containers by allowing only non-root users and configuring the file system as read-only

j) Avoid default values to enhance clarity and reduce the risk of errors

k) Prioritise small container sizes for faster builds, reduced disk space usage, and quicker image pulls

l) When uncertain, allow a crash to occur

m) Automate CI/CD pipeline to avoid manual deployment of Kubernetes

Conclusion

The importance of Kubernetes Architecture becomes more crucial during peak times or seasonal fluctuations. Its ability to automatically scale applications ensures optimal resource use, cutting costs and boosting performance. Its vibrant community and diverse ecosystem provide a plethora of third-party integrations, extensions, and add-ons.
