What is the Transport Layer? Key Responsibilities and Protocols

While browsing through your favourite online store or surfing over your favourite blogs, you must have come across a browser lock indicator in the URL section; if so? You are observing the Transport Layer at work. It is the technology that is responsible for keeping your online interactions secure by coding the exchanged data between the browser and your website server.

In this blog, we will be discussing how the Transport Layer works, its key responsibilities and protocols. Read ahead to learn more!

What is the Transport Layer?

In the Open Systems Interconnection (OSI) model of networking, the Transport Layer is the fourth layer. It ensures reliable communication by breaking data into segments, managing error detection, retransmission, and controlling the flow of data. Its primary task is to ensure the data is travelling smoothly between the two communication systems.

Transport Layer protocols include Transmission Control Protocol (TCP), which provides reliable, connection-oriented communication, and User Datagram Protocol (UDP), which offers faster, connectionless communication.

How the Transport Layer Works?

The Transport Layer acts like a careful organiser, making sure data is broken into manageable pieces and arrives in the right order. It provides reliability and control so that communication between systems runs smoothly.

1) Segmentation: Breaks large data into smaller chunks called segments.

2) Reassembly: Puts the received segments back together at the destination.

3) Sequencing: Numbers each segment so they can be re-ordered if they arrive out of sequence.

4) Error Checking: Detects and requests retransmission of corrupted or missing data.

5) Flow Control: Prevents one system from overwhelming another by adjusting the data rate.

Together, these processes ensure that what is sent from one device is accurately and efficiently reconstructed at the other end.

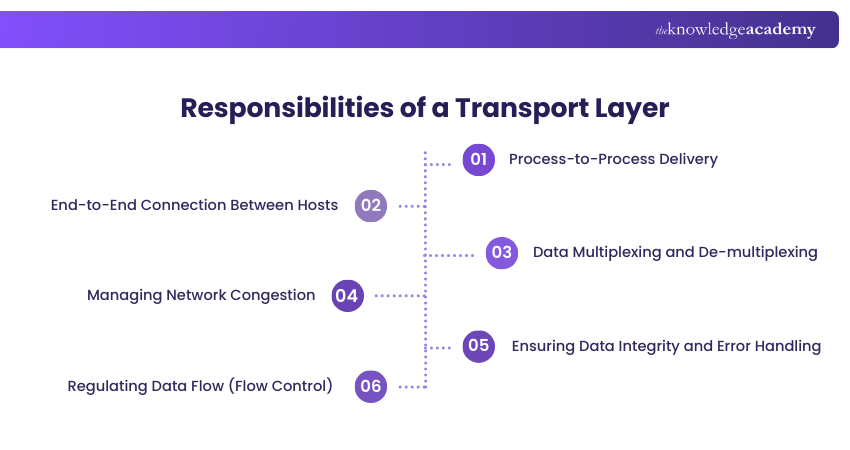

Responsibilities of a Transport Layer

In this section, we will be exploring the various responsibilities of the Transport Layer:

1) Process-to-Process Delivery

It ensures that data sent by one application reaches the correct application. Each application is assigned a port number, and by combining segments with these port numbers, the Transport Layer directs data to the right destination application.

2) End-to-End Connection Between Hosts

Besides transferring data, the Transport Layer establishes a logical end-to-end connection between applications running on different hosts. This ensures that communication from source to destination remains reliable and consistent.

3) Data Multiplexing and De-multiplexing

For multiple applications to use the network at the same time, the Transport Layer multiplexes data streams into a single flow for transmission, and at the receiver’s end, it de-multiplexes the data back to the correct applications.

4) Managing Network Congestion

Congestion occurs when multiple sources on a network are sending data simultaneously, leading to slowdowns or packet loss. The Transport Layer applies open-loop mechanisms to prevent congestion and closed-loop mechanisms to detect and reduce it, ensuring efficient communication.

5) Ensuring Data Integrity and Error Handling

During transmission, the Transport Layer uses error-detection codes such as checksums. These mechanisms help identify corrupted data, request retransmission if necessary, and ensure that only accurate information is delivered to the user.

6) Regulating Data Flow (Flow Control)

The Transport Layer uses flow control mechanisms to prevent overwhelming the receiver with excessive data. Techniques such as the sliding window protocol regulate transmission rates, ensuring smooth and loss-free communication.

Gain knowledge of how to install, configure and troubleshoot Domain Name Service (DNS) by registering in our Ubuntu Linux Server Administration Training now.

Protocols of a Transport Layer

The Transport Layer functions with a set of protocols regarding how data is sent, received and organised. Generally, the two common Transport Layer protocols are:

1) User Datagram Protocol (UDP)

UDP is a connectionless protocol that is deemed to be unreliable since it does not utilise acknowledgement or guarantee delivery. Even though it is unreliable, it ensures efficiency, making it better suited for real time applications such as video conferencing and video calls.

2) Transmission Control Protocol (TCP)

On the other hand, TCP is a connection-oriented protocol, establishing a direct end-to-end connection between the application and its users. Unlike its counterpart, it is highly, reliable ensuring the delivery and retransmission of lost packets. Such reliability makes it suitable for web browsing, e-mail, etc.

3) Quick UDP Internet Connections (QUIC) Protocol

QUIC is a relatively new protocol designed to combine the reliability of TCP with the efficiency of UDP. Other Transport Layer protocols include Fibre Channel Protocol (FCP), Reliable Data Protocol (RDP) and Stream Control Transmission Protocol (SCTP). All these various protocols are designed for a particular task, depending upon the application.

Understand the OSI and TCP/IP models with our CompTIA Network+ Training - Register now!

Transport Layer in TCP/IP Model

The OSI model is a conceptual reference framework that explains how communication between systems can be structured. In contrast, the TCP/IP model is a practical framework widely implemented in modern computer networks and the Internet.

In the TCP/IP model, the Transport Layer acts as an intermediary between the Internet Layer and the Application Layer. Its main objective is to ensure reliable and orderly transmission of data across the network.
