Software Architecture Patterns: An Overview and Comparison

In the world of software development, creating well-structured systems is crucial for success. A key element of achieving this is being aware of and making use of Software Architecture Patterns. These patterns provide solutions to common design challenges and direction on how to set up and construct software systems to satisfy needs and objectives. In this blog, we will explore different Software Architecture Patterns, their characteristics, and their applications in creating scalable software solutions.

Table of Contents

1) What is Software Architecture?

2) Types of Software Architecture Pattern

  a) Layered Architecture Pattern

  b) Client-Server Architecture Pattern

  c) Microkernel Architecture Pattern

  d) Microservices Architecture Pattern

  e) Space-Based Architecture Pattern

  f) Pipe-filter Architecture Pattern

  g) Master-slave Architecture Pattern

  h) Event-driven Architecture Pattern

  i) Broker Architecture Pattern

  j) Peer-to-Peer Architecture Pattern

3) Difference Between Software Architecture Pattern and Design Pattern

4) Conclusion

What is Software Architecture?

Software Architecture is the blueprint of a software system. It is a plan that outlines how different parts of a software system will work together. It involves designing and organising the software components, including modules, layers, and interfaces. It helps to meet expectations and qualities such as scalability, reliability, and maintainability. Software Architecture serves as the skeleton for the entire software system, guiding its development and evolution.

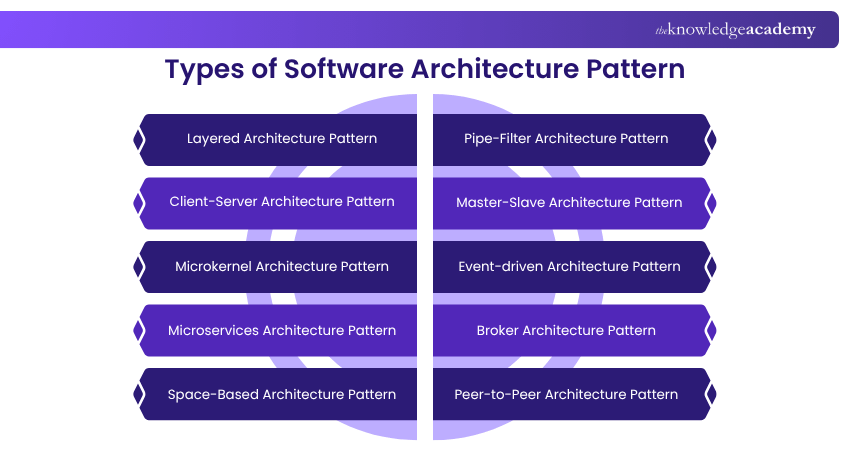

Types of Software Architecture Pattern

Software Architecture Pattern is the reusable solution to a commonly occurring problem in Software Architecture design. These patterns offer guidelines and best practices for organising the structure and interactions of software components to achieve the required system qualities. Architecture Patterns help to design software systems that are adaptable and easier to understand. Here are some of the popular architectural patterns that have aided software companies in scaling up their businesses:

1) Layered Architecture Pattern

Layered Architecture is one of the most common types of Software Architecture Patterns. It organizes the software system into multiple layers, each responsible for a distinct functionality. The layers are typically arranged hierarchically and interact only with adjacent layers. These layers include the presentation layer, which handles user interaction; the business logic layer, which processes data; and the data storage layer, which connects with the database. This structure also addresses key Quality Attributes in Software Architecture, such as maintainability and separation of concerns, making it a widely adopted pattern.

2) Client-server Architecture Pattern

In this pattern, clients interact with servers over a network to obtain services, following the Client-Server Architecture model. Clients can be any external entity outside the server, whether accessing it through a web browser, mobile application, or desktop application. The server hosts and delivers the expected facilities, including data storage and processing, application logic and presentation, business rules, and workflow management. This pattern ensures the optimal utilisation of centralised resources and enhances scalability, making it a widely adopted approach in distributed computing environments.

3) Microkernel Architecture Pattern

Microkernel Architecture keeps things simple by keeping the core system functionality (microkernel) minimal and allowing extra features through plug-ins or modules. The microkernel provides essential services such as memory management, process scheduling, and inter-process communication. Plug-ins extend the system's functionality to meet requirements without changing the core. This pattern improves flexibility and adaptation to changing requirements.

Build practical project management capabilities with the BCS Foundation Certificate in IS Project Management Course today.

4) Microservices architecture pattern

Microservices Architecture Guide breaks down the application into small, separate services, each handling a single business function. It allows the teams to own, develop, deploy, and scale the services independently and without disrupting others. The services interact through lightweight protocols, like HTTP or messages. Each service can be made using different tools and languages. This pattern helps make the system flexible and able to handle big changes easily, making it ideal for complex and rapidly evolving systems. In the same way, Microservices enhances scalability and flexibility, allowing businesses to adapt swiftly to changing demands.

5) Space-based Architecture Pattern

Space-Based Architecture Is a distributed computing Architecture that circulates data across multiple nodes in a space-based manner. This helps make the system bigger and more stable. This pattern is commonly used in distributed caching systems, real-time analytics platforms, and high-performance computing environments. This is useful for systems that need to handle lots of data quickly.

Enhance strategic planning skills with the BCS Professional Certificate In Business Architecture Training for business success.

6) Pipe-filter Architecture Pattern

Pipe-filter Architecture is a data processing Architecture pattern where data flows through a series of components (filters) connected by pipes. Each filter performs specific operations on the data. The data flows constantly through the pipeline, with each filter processing the data and passing it to the next filter until the expected result. This pattern is ideal for applications such as compilers, data transformation pipelines and multimedia processing systems.

7) Master-slave Architecture Pattern

In the Master-Slave Architecture, there is a single master node that coordinates many slave nodes to perform tasks. The master node gives jobs to slave nodes, gathers the results, and oversees the whole process. This pattern is used in distributed computing environments, parallel processing systems, and networked applications. It is ideal in situations where tasks need to be divided and executed in parallel for improved performance and scalability.

8) Event-driven Architecture Pattern

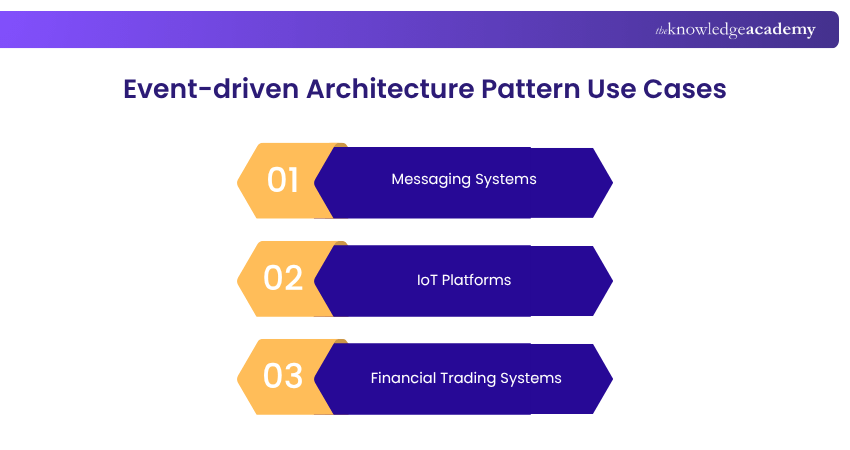

Event-driven Architecture is a pattern where components communicate and interact based on events. Events represent important changes or occurrences within the system that trigger responses from other components. It is used in messaging systems, IoT platforms, and financial trading systems.

Develop integration expertise with the BCS Practitioner Certificate In Systems Integration Training for effective system delivery.

9) Broker Architecture Pattern

Broker Architecture is a messaging Architecture pattern. It creates a central system that mediates communication between distributed systems or components. Producers send messages to the broker, which in turn sends them to the consuming unit. This pattern promotes loose coupling between producers and consumers. A broker-based system includes message queues, topics, and subscribers.

10) Peer-to-Peer Architecture Pattern

In Peer-to-Peer Architecture, all nodes within the network have the same capabilities and are equally responsible. Peers interact directly with one another, sharing resources like files or computing power, without the need for a mediator. The Importance of Software Architecture in this pattern lies in its ability to enable peer discovery, resource sharing, and collaboration. This architecture is particularly suitable for decentralized systems, file-sharing networks, and collaborative applications.

Build essential DevOps knowledge with the BCS Foundation Level Certificate In DevOps Training for modern IT environments.

Difference Between Software Architecture Pattern and Design Pattern

Software Architecture Pattern focuses on a software system's high-level organisation and structure. It covers defining its overall layout and major components. It addresses fundamental design decisions and gives guidelines for organising the system's components and interactions to achieve qualities.

On the other hand, Design Pattern is smaller-scale solutions to common design problems within individual components or modules of the system. It addresses recurring design issues at a lower level. It offers solutions and best practices for implementing components of a software system, such as algorithms, data structures, or object interactions. It further enhances code reusability, readability, and maintainability.

Strengthen data protection expertise with the BCS Practitioner Certificate In Data Protection Training for compliance readiness.

Conclusion

Understanding Software Architecture Patterns, along with the related Software Architecture Interview Questions, is essential for designing robust and scalable software systems. By exploring various architecture patterns and their differences from design patterns, developers can make informed decisions to address challenges and requirements in software development.
